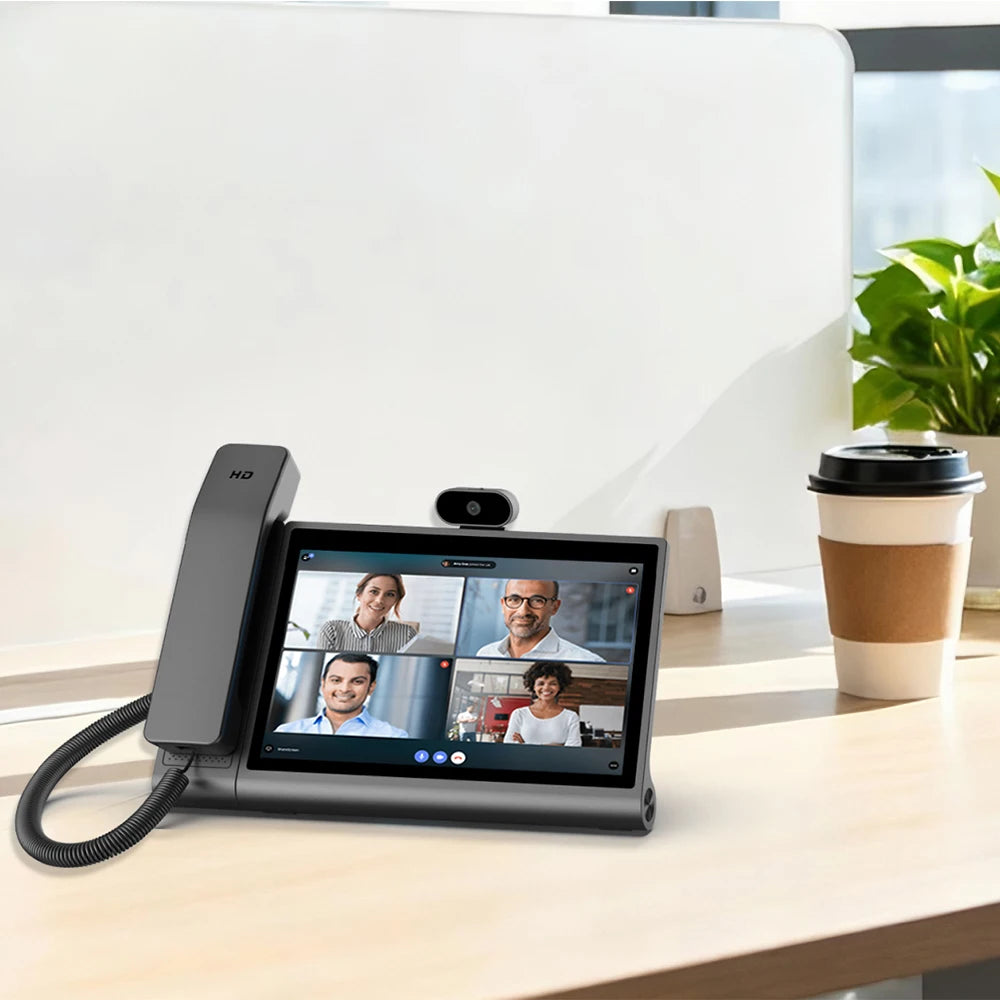

10.1" VOIP Android Phone Desktop, Rockchip 3568, 4GB RAM, 32GB ROM, Android 12, Noise, echo cancellation, Camera and 2 Micphone

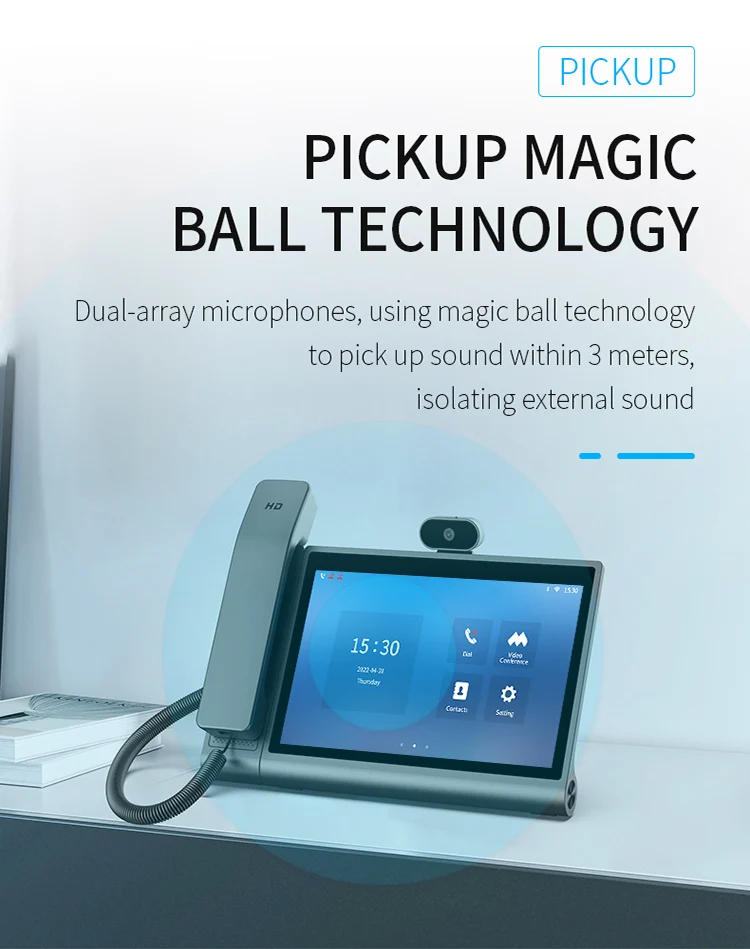

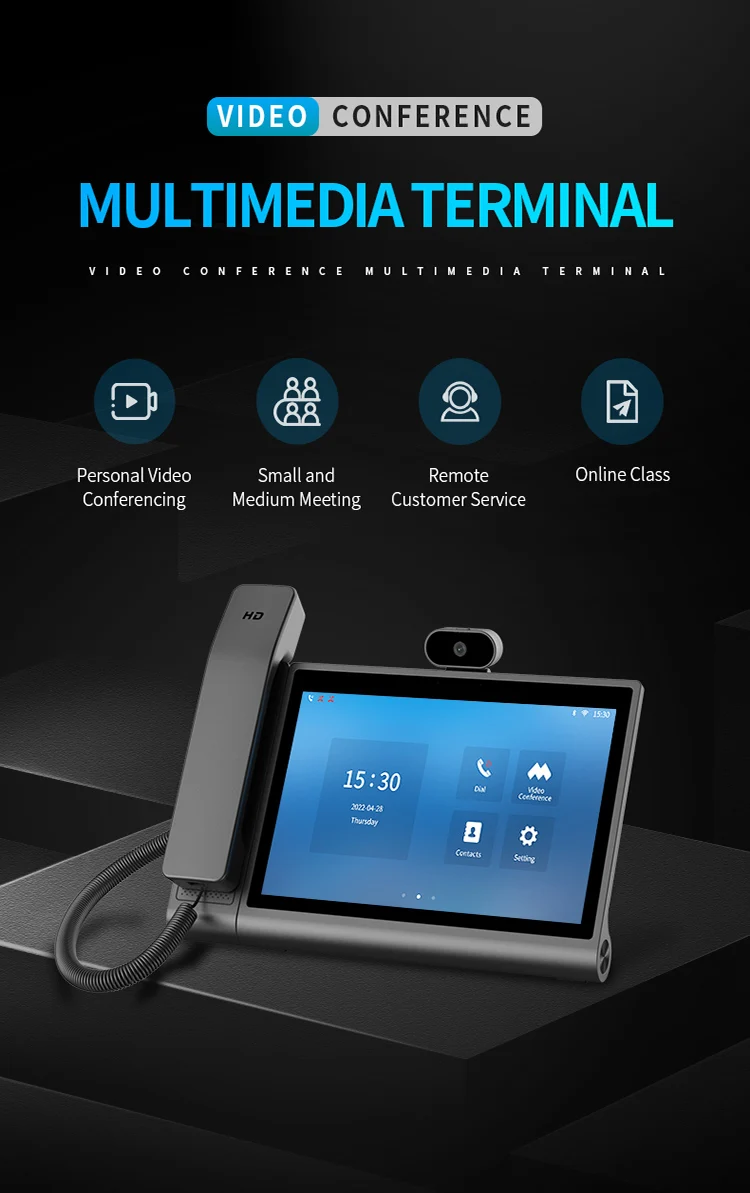

It integrates a 10.1-inchtouch screen, camera, 2*microphone, speaker and conference system. It uses sound pickup magic ball technology and environmental noise filtering technology to effectively eliminate interference background noise from surrounding keyboards, mic, etc. It uses a high-performance processor, supports high-definition video conferencing, and supports Tencent videoconferencing software; it is suitable for various application scenarios, such aspersonal video conferencing, small and medium-sized meetings, remote customer service, and online course assistance.

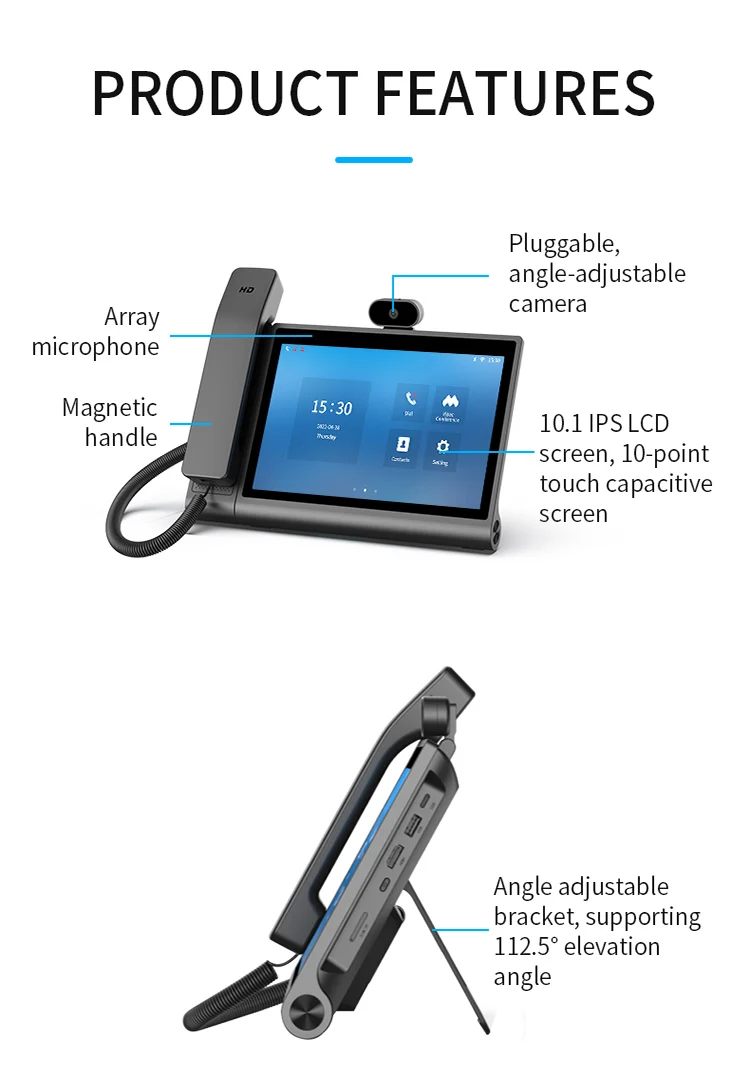

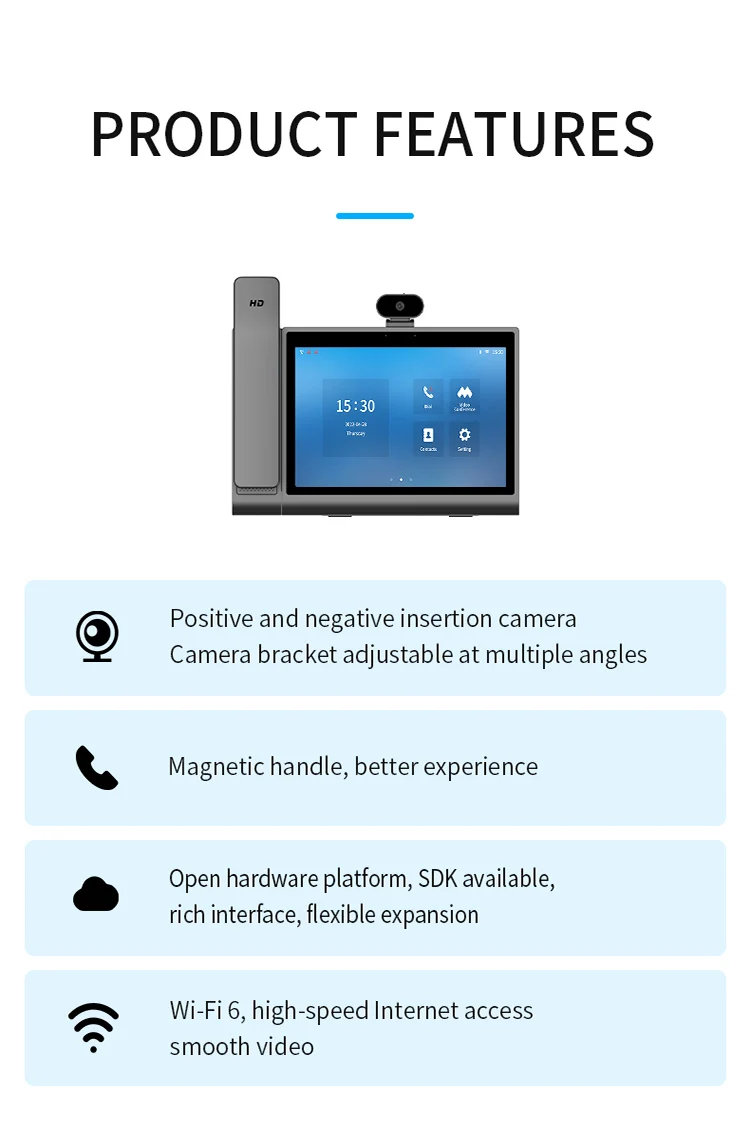

Product features
1. 200W front camera;
2. Support voice and video calls;
3. Support wired network communication;
4. Support automatic network time calibration;
5. Support remote upgrade;
6. Support secondary dialing for call services;
7. Support caller ID service;
8. Support address book function.

Product specification

System parameters
CPU frequency: 4 cores 4*Cortex-A55 (2.0GHz)
RAM: 4GB
ROM :32GB
Operating system: Android 12.0 (64-bit)

Screen display
Size: 10.1 inches
Resolution: 10-point touch, resolution 1280*800
External interface
Wi-Fi: 802.11a/b/g/n/ac 2.4G/5G dual-band
Bluetooth: 5.0
USB Type-C: upgrade, debug
USB Type-A: USB3.0, external mouse USB flash drive
POWER: power supply
TF card: maximum support 32G
HDMI interface: connect to HDMI terminal, support dual-screen display
Headphone port: RJ9, for external headphones
Network port: standard 2 RJ45 interfaces, Gigabit adaptive network port, one interface supports POE power supply
PHONE port: 1 PSTN telephone line interface

Power supply: DC 12V/1A±10%

Camera: CMOS pixel 2 million

Backlight: Provide color display backlight adjustment function

Operating temperature: 0°C~40°C

Operating humidity: 10%~95% (no condensation)

Atmospheric pressure: 86kPa~106kPa

Storage temperature: -20°C~50°C

Product size: 297*235*67mm

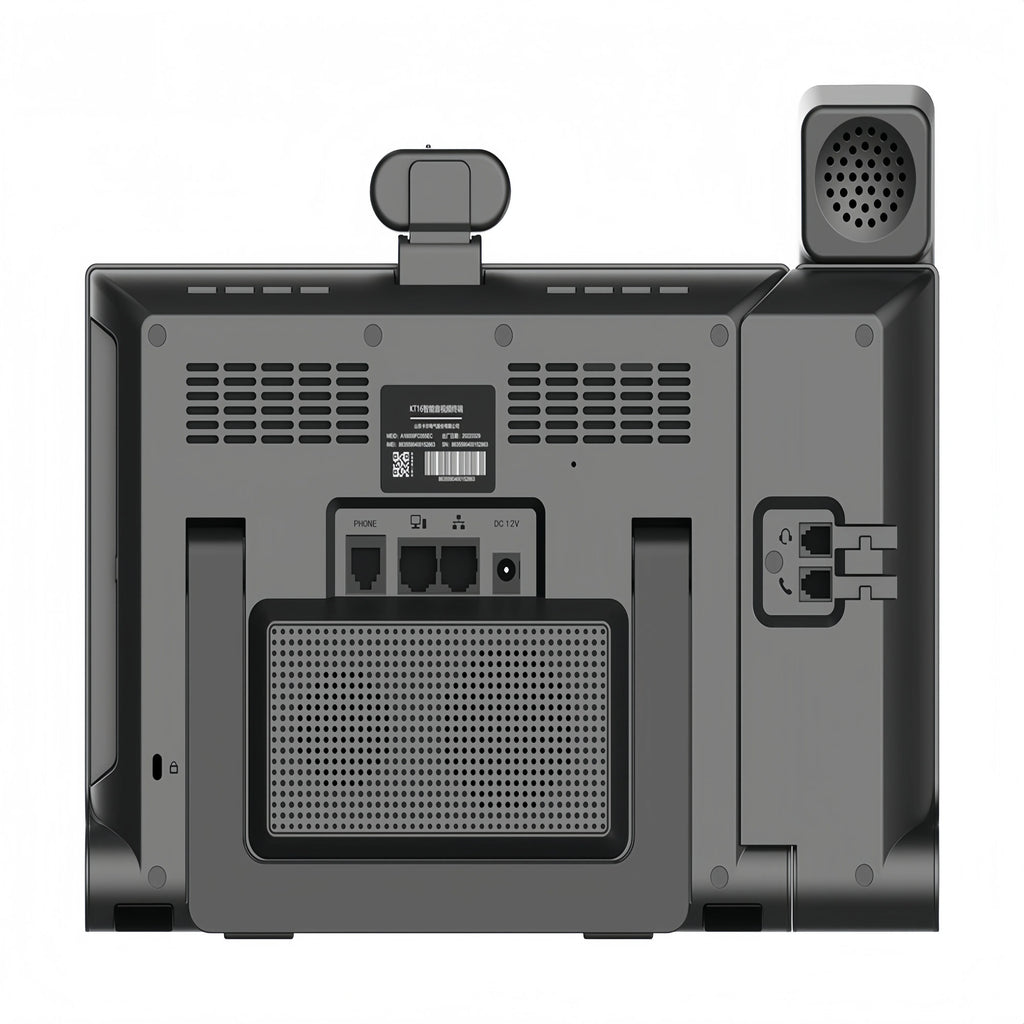

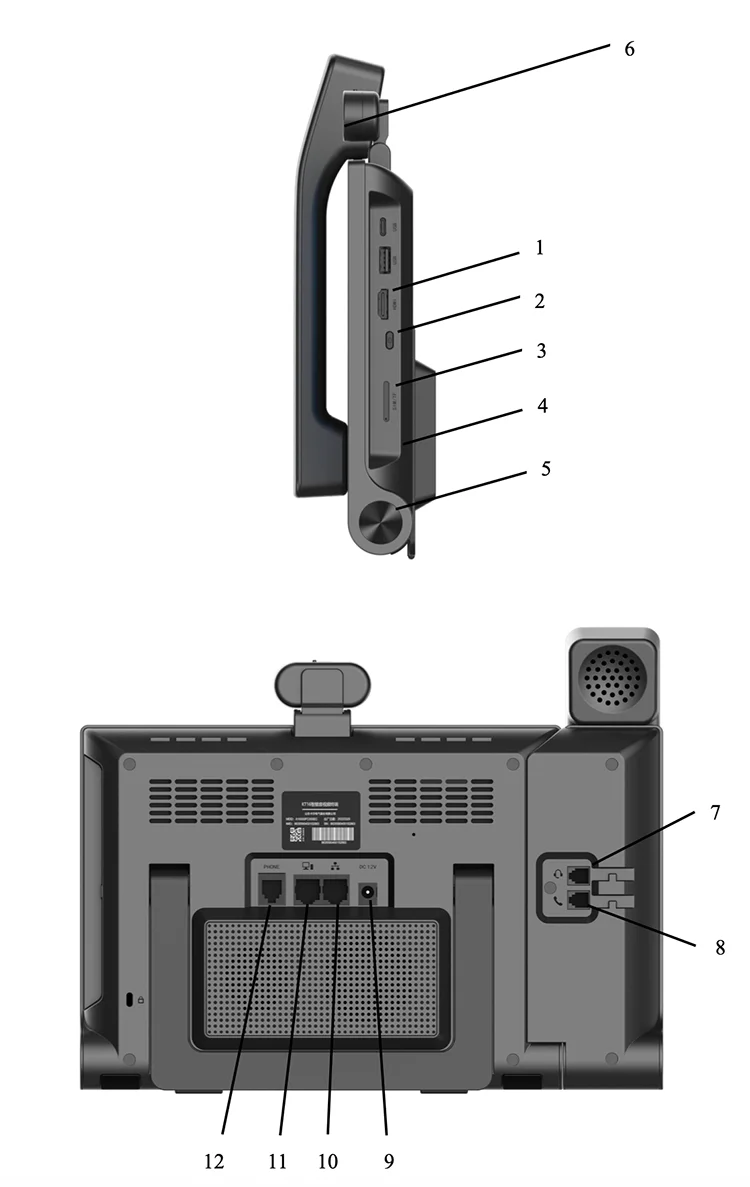

Product details

1. USB Type-C: Phone data interface, connected to a computer for upgrading or debugging;
2. USB Type-A: USB 3.0 interface, used to connect a mouse or USB flash drive;
3. HDMI interface: Connected to an HDMI terminal, supports dual-screen simultaneous display;
4. Power button:When the phone enters sleep mode, can wake it up by pressing the power button; pressing the power button again will turn off the screen;
5. SIM/TF: Insert a TF card for expansion, does not support SIM cards;
6. Front camera (optional): Can use the front camera for video calls;
7. Headphone interface: RJ9, insert headphones, and use headphones for media sound playback;
8. Handset interface: RJ9, after connecting the handset, you can use the handset for calls.
9. Power interface: Use the original power adapter to power the phone through the round power socket;
10. INTERNET+POE interface (POE optional): RJ45, connect to the router or switch via a network cable to access the Internet, support POE power supply;
11. PC interface: Connect to the PC via a network cable to share the Internet;
12. PSTN interface (optional): Connect to the traditional telephone line and use wired method to make calls.
